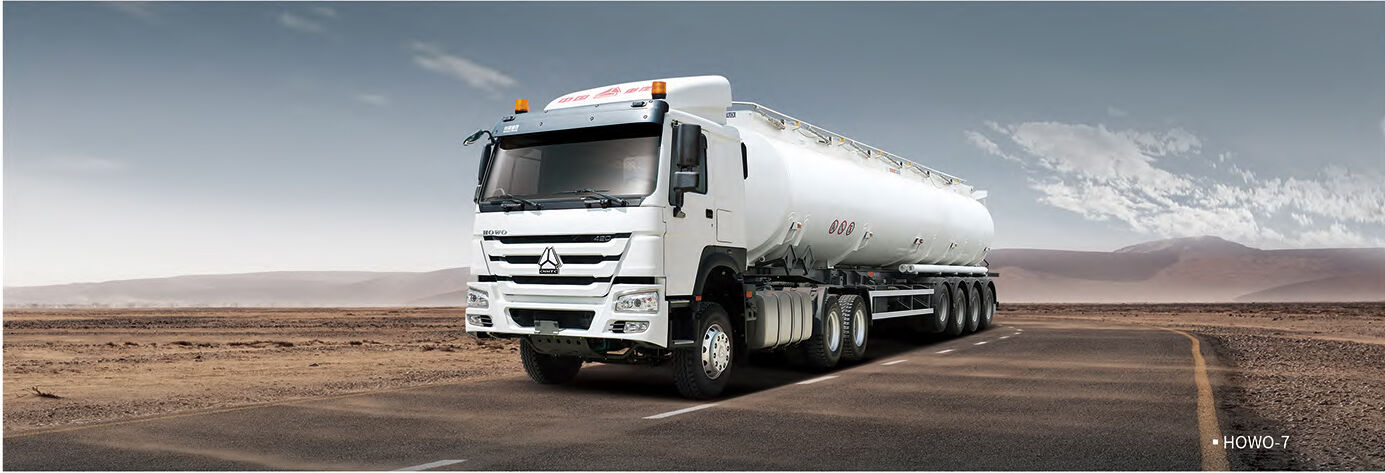

HOWO TANK TRAILER
| Dimension and Weight | |
| Overall Dimension（mm） | 11800x2500x3900mm |
| Wheelbase | 7,500mm+1,310mm+1,310mm |
| Payload | 50,000kg |
| Tare weight | 10,000kg |
| G.V.W.R. | 60,000kg |
| Function | transport Fuel, Oil, Diesel |
| Tank | |
| Volume | 42000L |
| Thickness(mm) | Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm |
| Welding standard | All welding are to be done by qualified welder per applicable national standard |
| Compartment | 3 compartments ( 3*16000L ) |
| Manhole cover | 3 units Safety manhole with breath valve, Aluminum, diameter 500mm. |
| Discharge valve | 3units 3” API valve with dust cover, aluminum Henghe Brand |
| Bottom valve | 3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand |
| Discharge pipe | 3〞seamless steel tube, 6m |
| Tanker body test | Hydrostatic test to 5 psi (35 Kpa) on each compartment |
| Running System | |
| Axle | 13Ton, ZY brand |
| Axle Number | Three |
| Tire | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System | Chinese standard 24V lighting system |
| Brake system: | Dual line pneumatic brake, SAE hose and connector,no ABS |
| Brake air chamber | 6 units T30/30 spring brake chambers |
| Emergency relay valve | Wabco relay valve |
| Tire Type and quantity | 1200R22.5 12units |
| Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Zhenhua brand 28ton external two speed telescopic manual operation |
| Accessories: | |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Fire extinguisher | 2 units per trailer |
| Handrail | 800mm height, pneumatic controlling |
| Mud guard | Steel mud guard and front mudguard |
| Walkway | Anti-skid walk way from rear to first manhole |
| Ladder | High folding ladder as CIMC standard |
| Spare wheel carriers | 2 pcs |
| bumper | Rear bumper with adjustable height |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core electric cable protected by PVC conduit on main frame | |
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
| Packing | Nude, Polish with wax before shipping |
