HOWO-7 8x4 TRACTOR TRUCK | ||||
SPECIFICATION | ||||
Engine | Make: SINOTRUKDisel:4-Stroke direct injection diesel engineEngine model:WD615.69,Euro II6-cylinder in line, 4-stroke, water cooled, turbocharged, direct injectionMaximum output:336hp(247KW) at 2200 rpmMaximum torque:1350Nm at 1100-1600 rpmDisplacement:9.726LBore:126mmStroke:130mm | Make: SINOTRUKDisel:4-Stroke direct injection diesel engineEngine model:WD615.47,Euro II6-cylinder in line, 4-stroke, water cooled, turbocharged, direct injectionMaximum output:371hp(273KW) at 2200 rpmMaximum torque:1500Nm at 1100-1600 rpmDisplacement:9.726LBore:126mmStroke:130mm | Make: SINOTRUKDisel:4-Stroke direct injection diesel engineEngine model:D12.42,Euro II6-cylinder in line, 4-stroke, water cooled, turbocharged, direct injectionMaximum output:420hp(309KW) at 2000 rpmMaximum torque:1820Nm at 1100-1500 rpmDisplacement:11.596LBore:126mmStroke:155mm | |
Clutch | Single-plate dry coil-spring clutch, diameter 430mm,hydraulically operating with air assistance. | |||
Transmission | HW19712, 12 forward, 2 reverseHW19710, 10 forward, 2 reverse | |||
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||
Front Axle | HF9Steering with double T-cross section beam | |||
Rear Axles | HC16Pressed axle housing, central single reduction with planetary wheel reduction and with differential lock | |||
Chassis | Frame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced subframe, all cold riveted cross members | |||
Aluminum fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis | ||||
Steering | ZF power steering, model ZF8098,hydraulic steering with power assistance. Ratio: 22.2-26.2 | |||
Braking System | Service brake: dual circuit compressed air brake. Parking brake(emergency brake):spring energy, compressed air operating on rear wheels | |||
Auxiliary brake: engine exhaust valve brake | ||||
Tyres | 12.00R20, 11pics, radial tyres315/80R22.5, 295/80R22.5, 12R22.5 | |||

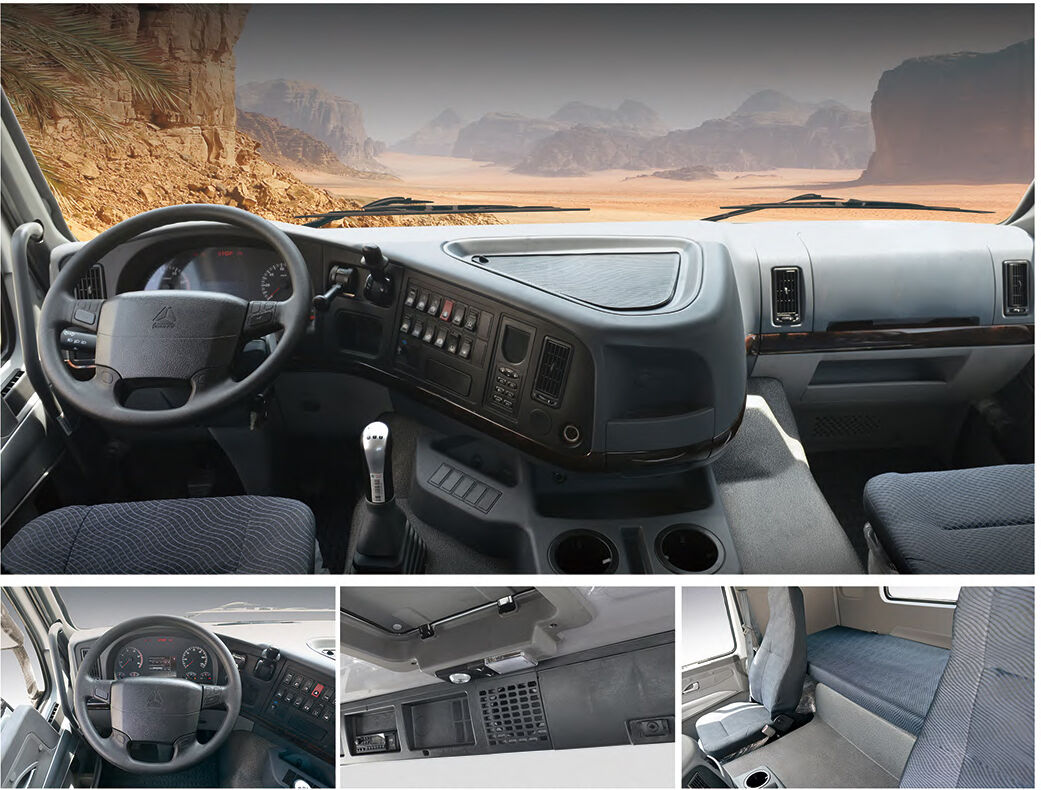

Cab | HW79Cab, double berth, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically dampedadjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exteriorsun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, airhorn, with 4-point support fully floating suspension + shock absorbers | |||
Electrical System | Operating voltage:24V,negative grounded | |||
Starter:24V.7.5Kw | ||||
Alternator:3-phase,28V,1500W | ||||
Batteries:2*12V,165Ah/180Ah | ||||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||
Instrument | Active check central controller with indicators, with this integral instrument the daily manual checks on the | |||
vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure | ||||
and battery charging. | ||||
Dimensions in mm | Wheel base 3225+1350 | |||
Front wheel track 2022 | ||||
Rear wheel track 1830 | ||||
Front overhang 1500 | ||||
Rear overhang 725 | ||||
Approach angle(°) 16 | ||||
Departure angel(°) 70 | ||||
Overall length 6800 | ||||
Overall width 2496 | ||||
Overall height 3835 | ||||
Weight in kg | Dead weight 9200 | |||
Front axle loading capacity 7000 | ||||
Rear axle loading capacity 18000/18000 | ||||
Performance | Maximum driving speed(km/h) 102 | |||
Fuel consumption(L/100km) 30-33 |
