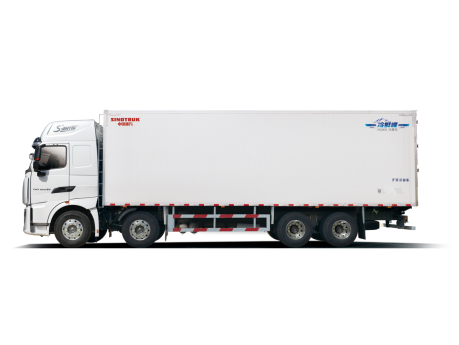

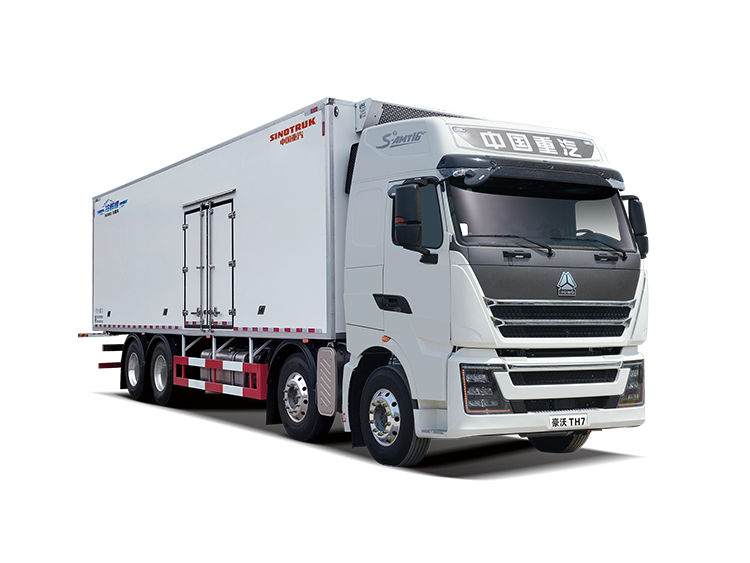

HOWO TRUCK TH7 TRUCK
| Engine | Engine model: WD615.47, Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 371hp(273Kw) at 2200 rpm according to DINMaximum torque: 1460Nm at 1300~1600 rpmBore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio:17:1Specific fuel consumption: 190g/kwh; Engine oil filling quantity: 19LCooling system filling quantity (long-term filling): 40LThermostat opening temperature: 71oC Single cylinder air compressor Rigid fan |
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Transmission | SINOTRUK HW series. Model HW19710. 10 gears transmission, transmission with main and auxiliary transmission structure. Main transmission with double counter shaft, auxiliary transmission with planetary reduction, with PTO. Ratio:10.73,7.89,5.91,4.38,3.29,2.45,1.82,1.35,1, 0.75 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | HR9, 9 ton, Steering with double T-cross section. Disc Brake. Option: drum brake. |
| Rear Axles | AC16, 16ton. Double Reduction(central reduction+wheel reduction).Differential locks between wheels and axlesRatio: 3.73 Option: 4.22 |
| Chassis | Frame: U-profile parallel ladder with section of 300×80×8mm and reinforced subframe, riveted cross membersFront suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizerRear suspension: 12 semi-elliptic leaf springs with bogie springFuel tank: with one 400 L fuel tank with locking fuel capFifth wheel size: 2 inch Option:3.5 inch |
| Steering | ZF8118(Left Hand Drive) , hydraulic steering with power assistance.Option: Right Hand Drive |
| Brakes | Service brake: duel circuit compressed air brakeParking Brake: spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust brakeWith ABS |
| Wheel & Types | Rims: 8.5-20,10 hole-steelTypes: 12.00R20 Tube Option: 12R22.5 |
| Driver’s cab | Long cab, all steel forward control, 55o hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, single bunk with 4-point support full floating suspension + shock absorbers with transverse stabilizer. |
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KWAlternator: 3-phrase, 28V, 1500W; Batteries: 2×12, 165AhCigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
